Solid Bar Drill Machinery

Solid Bar Drill Machinery
Send Inquiry
Product Code : T2120*5000MM
Brand Name : Guanlu
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price
  • 45000 USD ($)
  • Price Range
Product Specifications
  • Product Type
  • Horizontal
  • Material
  • casted iron
  • Computerized
  • Yes
  • Automatic Grade
  • Automatic
  • CNC Or Not
  • CNC
  • Control System
  • PLC Control
  • Center Distance
  • 400 Millimeter (mm)
  • Voltage
  • Customer requirements Watt/Volt ( w/v)
  • Power
  • 30000 Watt/Volt ( w/v)
  • Weight (kg)
  • Machine actual weight Kilograms (kg)
  • Dimension(L*W*H)
  • machine size Millimeter (mm)
  • Color
  • Other
  • Warranty
  • 12 months from the date of install or 13 months from the date of dispatch
Product Description

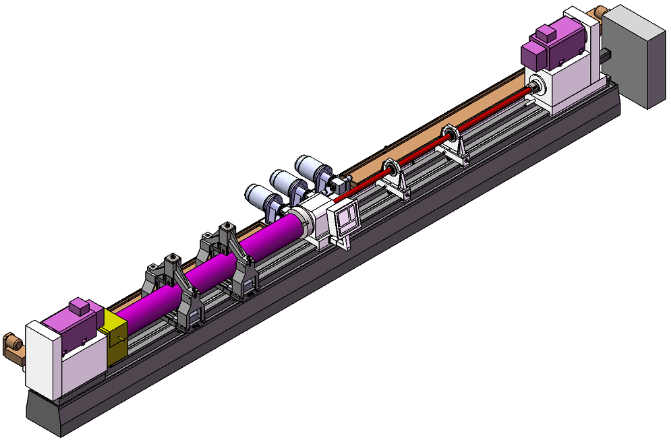

Deep hole gundrilling and BTA drilling machines

Machine Operation:

The machine has the function of drilling, boring, pull boring, trepanning, rolling.

Machine brief:

1) Drill hole method: Single spindle internal chips removal (BTA method) . This machine is used for the cylindrical workpiece concentric hole processing. Workpiece and tooling rotate oppositely when machine working .

2) Adopt front chips removal method when boring. It means the chips will flow out from holes on the clamp body of headstock front end.

3) Workpiece loading and clamping adopts one-end chuck and another end collect clamping by manual .

4) The machine used guide rail is double rectangular sliding guide rail , which is processed through medium frequency quenching and precision grinding.

5) Tooling spindle is driven by servo main motor , hydraulic two-gear variable speed, stepless speed can be achieved within each gear . Main motor power 55kw, max. speed of low gear is 400r/min, max. speed of high gear is 800r/min .

6) Tooling infeeding adopts servo motor ,servo speed reducer, rack and pinion structure , stepless speed can be realized .

7) Machine equips with two sets drill bar support rest , which is assembled with hitching and pulling structure, pull the drill bar support rest back to original position when the processing finished and returning tooling ; Can also adjust the axial position manually through the rack on machine bed ,but rack and pinion structure should be released by releasing structure under the machine working condition .

8) Oil pressure head can do axial movement controlled by servo system to tighten and loosen the workpiece; The collect is assembled in front end of oil pressure head .

9) Adopt one set center frame to support the workpiece, workpiece OD range is Φ60~Φ350mm Upper cover of center frame is opened and closed by manual;Adjust the axial position manually through the rack on machine bed.

10) Headstock drive the workpiece to rotate , servo main motor driven , hydraulic two-gear variable speed, can realize speed stepless within each gear, Main motor power 55kw, max. speed of low gear is 400r/min, max. speed of high gear is 800r/min , Three-jaw chuck is assembled in front end of spindle .

11) Adopts one chain plate chips removal devices to remove the cutting chips .

12) Coolant system adopts three groups of quantitative pumps, two groups with flow 100L/min, one group with flow 200L/min.

Machine main parameters:

Specification

Parameters

Remark

Working capacity

Drill hole diameter range

Φ30~Φ100mm

-

Max. Depth of hole

5000mm

-

Max. Length of workpiece

5000mm

-

Workpiece OD range

Φ60~Φ300mm

-

Machine Character

Z axis

Infeed speed range

5~500mm/min

Stepless

Rapid move speed

2000mm/min

-

Infeed motor torque

20Nm

Equips with gear reducer

Drill bar box

Gear quantity

 40--500r/min

Manual, 12 steps

Motor power

30KW


Headstock

Gear quantity

61--1000r/min

Manual,12 steps

Motor power

30KW


Coolant system

Max. Pressure

2.5MPa

Adjustable

Flow

100L  100L,

200L/min

Adjustable



Machine main parts list:

Series

Item Name

Supplier


Series

Item Name

Supplier

1

CNC system/Servo infeed motor

FANUC

5

Motor of coolant system

China brand

2

Main motor

Three-phase asynchronous motor

6

Gear pump of coolant system

China brand

3

Spindle bearing

NSK

7

Main hydraulic pressure components of hydraulic system

China brand

4

Screw bearing

China brand

8

Main electric components

SCHNEIDER

Packaging & Shipping

12

1. Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to prevent possible erosion during transportation.
2. A plastic cover to wrap around machine parts to enhance corrosion prevention.
3. Export standard fumigated wood cases are measured and specially made for packing.
4. Steel wire will be used to tighten and strengthen the packages inside container.


Our Services

Trade Information
  • FOB Port
  • Tianjin
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
  • Supply Ability
  • 20 SETS Per Year
  • Delivery Time
  • 4 Months
  • Packaging Details
  • 1. Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to prevent possible erosion during transportation.  2. A plastic cover to wrap around machine parts to enhance corrosion prevention.  3. Export standard fumigated wood cases are measured and specially made for packing.  4. Steel wire will be used to tighten and strengthen the packages inside container.
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Australia, Asia
  • Main Domestic Market
  • East India, North India, Central India
  • Certifications
  • CE ISO
