Gun Drilling Machines

Accounting to the most renowned leaders in the manufacturing of gun drilling machines, we have earned a good name and reputation. Keeping customers as our prime focus, we strive to deliver gun drilling machines of high accuracy and precision. From mold-making, die making to the combustion engine parts these machines are successful to drill straight and accurate holes in various kinds of materials such as wood , metal and plastics. The gun drilling machine comes with a coolant to cool the machine during hours of heavy work so as to prevent the functioning of the machine and also adds to the lubrication of the machine.

More About Gun Drilling Machine:
  • Defined by small diameters, Gun Drilling commonly covers a range of diameters between 1mm to 50mm / 0.04 -2.00 inches.
  • High-pressure coolant is innovated through the tool center & spindle.
  • Chips are released along the V-shaped groove on external side of the tool body.
  • Specific forms can be object in the tool tip for the operations of form tool.
  • Solid carbide, Brazed shank and inserted tools are available.
Gun Drilling Machine Features:
  • It fits in working with big workpieces of molding drilling field as well as in column nc drilling.
  • Working table is ideal for even heavy weight as well as big mold size, and it is perfect for making the pin holes and cooling holes in the mold.
  • The spindle is stepless during the working of gun drilling, and it is very efficient machine to work on it.
  • Perform on the same workpiece with various deep holes. It is useful to work on one workpiece as well as on many workpieces.
  • The nc design can keep the workpiece in full accuracy, also under no one's control.
  • Specially Designed to operating the gun drill.
  • Equipped with high pressure pump which deliver lubricant to rear of the drill.
  • Cnc gun drilling machines can be driven by spindle
Gun Drill Operating Parameter:
  • Hole Depth > 40 diameter, Use shorter drill and longer drill combination
  • Use lubricants, water soluble coolant at 10-12% concentration. Avoid Synthetic Coolant
  • Never rotate gun drill outside the hole
CNC Deep hole gun drill machine
close
CNC Deep hole gun drill machine
NZK2102x500mm
CNC deep hole gun drill machine is used for machining the hole diameter range within 3-30mm
Gun drilling machine for medical parts
close
Gun drilling machine for medical parts
NZK2102x4-1000mm
Machine brief: Drill mode:Gun drilling method. Concentric hole machining for cylindrical workpieces. Relative rotation of workpiece and tool during machining. Workpiece clamping :The front end of headstock and guide frame spindle are equipped with cone disc. Axial movement of headstock spindle controlled by hydraulic system,The workpiece is clamped and positioned automatically by chamfering the cone disc and the both ends of the workpiece;When the users ordered the machine, they need to provide the chamfer size of both ends of the workpiece,as well as the workpiece size.
Gun drilling machine for thermocouple
close
Gun drilling machine for thermocouple
ZSK2102*1000mm
The machine adopts gun drills chip removal methods,through one time continue drilling can get the processing quality of drilling expanding and reaming.Diameter accuracy can reach IT7-IT11.Surface roughness can reach Ra0.4-Ra6.3.
Deep hole Drilling Machines for the Molds
close
Deep hole Drilling Machines for the Molds
ZSK2103A
ZSK2103A single spindle , multi-spindles, three coordinate gun drilling machine is specially to drill single dimensional,double dimensional,three dimensional deep holes ,it is suitable for drilling square workpiece, specific workpiece, multi-holes round workpiece and so on . Same diameter holes, one time clamping can finish all the holes on the workpiece. High efficient, easy to operate,this series gun drilling machine is economical type, X axis and Y axis is digital display, Z axis is CNC control . We also can design the machine according to customers demand .
CNC Four spindle Gun drilling Machine
close
CNC Four spindle Gun drilling Machine
NZK2102X4-1000mm
Drill mode:Gun drilling method. Concentric hole machining for cylindrical workpieces. Relative rotation of workpiece and tool during machining. Workpiece clamping :The front end of headstock and guide frame spindle are equipped with cone disc. Axial movement of headstock spindle controlled by hydraulic system,The workpiece is clamped and positioned automatically by chamfering the cone disc and the both ends of the workpiece;When the users ordered the machine, they need to provide the chamfer size of both ends of the workpiece,as well as the workpiece size.
Three axis gun drilling machine for cubic workpiece
close
Three axis gun drilling machine for cubic workpiece
ZSK2103Ax1500mm
lZ Axis GSK CNC system lX,Y axis is digital display.(gear box control by manual ) lWorktable is 1500mmx1200mm lDrill depth: 1500mm lHole Diameter 3-30mm. lAuto Chips conveyor device lJobs can move left and right,(gear motor drive the screw turning,the data display instrument can show the jobs position numerical value) lThe drill box slide table can move up and down,(gear motor drive the screw turning,the date display instrument can show the jobs position numerical value).
Three Coordinate Deep Hole Gun Drilling Machine
close
Three Coordinate Deep Hole Gun Drilling Machine
ZK2303x1350mm
This machine is with gundrilling processing type. The machine is with T type groove work table, groove width 22mm. The worktable size: 1500mm×1000 mm Linear for X-axis, Y-axis, Z-axis: made in Taiwan. The linear sliders are with sealing. The worktable is with safety guard. The main spindle of drill box is driven by variable frequency motor, synchronous belt, synchronous belt wheels, to realize stepless speed adjusting. The main motor power is 5.5kw, Max speed of the main spindle is 5000r/min. The end face of the drill box adopts Deublin rotary connector.
CNC Four spindle gun drilling machine
close
CNC Four spindle gun drilling machine
NZK2102x4-1000mm
Drill model:Gun drilling method. Concentric hole machining for cylindrical workpieces. Relative rotation of workpiece and tool during machining.
Deep hole gun drilling machine
close
Deep hole gun drilling machine
ZK2103x500mm
The machine adopts Gun drilling method , double spindle structure ,it can drilling 2 workpiece in the same time.the tooling and workpiece are rotating relatively, and the tooling is infeeding.
Column type gun drilling  machine
close
Column type gun drilling machine
ZK2303x1350mm
This machine is with gundrilling processing type. The machine is with T type groove work table, groove width 22mm. The worktable size: 1500mm×1000 mm Linear for X-axis, Y-axis, Z-axis: made in Taiwan. The linear sliders are with sealing. The worktable is with safety guard. The main spindle of drill box is driven by variable frequency motor, synchronous belt, synchronous belt wheels, to realize stepless speed adjusting. The main motor power is 5.5kw, Max speed of the main spindle is 5000r/min. The end face of the drill box adopts Deublin rotary connector.
Bone nail  drilling machine
close
Bone nail drilling machine
NZK2102x2500mm
Machine Operation:Gundrilling Component Details: Bone nail Machine Specifications: Technical Items Parameters Drilling diameter range 3mm-30mm Max.Hole drilling depth 2500mm Hole length-diameter ratio 100:1 CNC control system: GSK syste
Medical parts gun drilling machine
close
Medical parts gun drilling machine
NZK2102x4-1000mm
Drill mode:Gun drilling method. Concentric hole machining for cylindrical workpieces. Relative rotation of workpiece and tool during machining. Workpiece clamping :The front end of headstock and guide frame spindle are equipped with cone disc. Axial movement of headstock spindle controlled by hydraulic system,The workpiece is clamped and positioned automatically by chamfering the cone disc and the both ends of the workpiece;When the users ordered the machine, they need to provide the chamfer size of both ends of the workpiece,as well as the workpiece size.
Deep Hole Gun Drilling Machine for cubic workpiece
close
Deep Hole Gun Drilling Machine for cubic workpiece
ZK2303x1350mm
This machine is with gundrilling processing type. The machine is with T type groove work table, groove width 22mm. The worktable size: 1500mm×1000 mm Linear for X-axis, Y-axis, Z-axis: made in Taiwan. The linear sliders are with sealing. The worktable is with safety guard.
Oilfield deep hole drilling machine
close
Oilfield deep hole drilling machine
NZK2102x2500mm
lDrill mode:Gun drilling method. Concentric hole machining for cylindrical jobs. Relative rotation of job and tool during machining. job clamping :The front end of headstock and guide frame spindle are equipped with cone disc. Axial movement of headstock spindle controlled by hydraulic system,The job is clamped and positioned automatically by chamfering the cone disc and the both ends of the job;When the users ordered the machine, they need to provide the chamfer size of both ends of the job,as well as the job size.
Oil pump injectors  gun drilling machine
close
Oil pump injectors gun drilling machine
NZK2102x2-2500mm
Drill mode:Gun drilling method. Concentric hole machining for cylindrical jobs. Relative rotation of job and tool during machining. job clamping :The front end of headstock and guide frame spindle are equipped with cone disc. Axial movement of headstock spindle controlled by hydraulic system,The job is clamped and positioned automatically by chamfering the cone disc and the both ends of the job;When the users ordered the machine, they need to provide the chamfer size of both ends of the job,as well as the job size.
Gun Drill Machinery
close
Gun Drill Machinery
NZK2102x2500mm
lDrill mode:Gun drilling method. Concentric hole machining for cylindrical jobs. Relative rotation of job and tool during machining. job clamping :The front end of headstock and guide frame spindle are equipped with cone disc. Axial movement of headstock spindle controlled by hydraulic system,The job is clamped and positioned automatically by chamfering the cone disc and the both ends of the job;When the users ordered the machine, they need to provide the chamfer size of both ends of the job,as well as the job size. The machine adopts linear guide rail.
Double spindle  gun drilling machine
close
Double spindle gun drilling machine
TSK2102*2-2500MM
Drill mode:Gun drilling method. Concentric hole machining for cylindrical jobs. Relative rotation of job and tool during machining.
gun drilling machine  for  medical parts
close
gun drilling machine for medical parts
NZK2102x4-1000mm
Drill mode:Gun drilling method. Concentric hole machining for cylindrical workpieces. Relative rotation of workpiece and tool during machining. Workpiece clamping :The front end of headstock and guide frame spindle are equipped with cone disc. Axial movement of headstock spindle controlled by hydraulic system,The workpiece is clamped and positioned automatically by chamfering the cone disc and the both ends of the workpiece;When the users ordered the machine, they need to provide the chamfer size of both ends of the workpiece,as well as the workpiece size.
Single Axis Gun Drilling Machine
close
Single Axis Gun Drilling Machine
123-2
Single Axis Gun Drilling Machine is specifically engineered for a wide range of metals, hole diameters and hole depths. Highly appreciated among clients for high precision, excellent productivity and compact design, the machine is offered to clients in different specifications to meet their individual requirements. It is widely used in various industries like oil & gas, defense, automotive, medical, power, general engineering, nuclear, die and mold, instrumentation and steel.
Double Spindles Gun Drilling Machine
close
Double Spindles Gun Drilling Machine
123
This Double Spindles Gun Drilling Machine is integrated with advanced technology that ensures excellent production rate and highly accurate operation. Widely used for drilling high precision deep holes, it is demanded in defense and automotive industry. Capable of handling a wide range of hole diameters, the machine is best known for its rugged design, low maintenance and easy installation. We are offering this machine to clients in different specifications to meet their individual requirements.
Carbide Deep Hole Drilling Machine
close
Carbide Deep Hole Drilling Machine
125
We are offering this Carbide Deep Hole Drilling Machine to clients in different specifications to meet their individual requirements. The machine is widely used in automotive, aerospace, defense and forging industry for deep hole drilling work. Manufactured in compliance with industry standards using supreme quality materials that are procured from reputed vendor in market, the machine is integrated with advanced technology and ensures excellent production rate without any hassle.
Gun Drilling Machine
close
Gun Drilling Machine
129
3 Axis Gun Drilling Machine is extensively used for hydraulic tools, glass moulds and rubber moulds. The machine is specifically engineered for use with special sharped workpiece. The deep hole diameter range and depth is easy to adjust in the machine according to the requirement. We use superior quality materials to manufacture the machine in strict tandem with industry standards. Our clients can get this machine from us in different specifications at economical price.
Four Spindle Deep Hole Drilling Machine
close
Four Spindle Deep Hole Drilling Machine
561
Four Spindle Deep Hole Drilling Machine is highly acclaimed by clients for its highly accurate positioning, bore straightness and concentricity precision. The machine is wisely manufactured in strict accordance with industry standards using supreme quality materials. Available for clients in different specifications to meet their individual requirements, the machines are widely used in aerospace, automotive, nuclear and power plant. We are offering this drilling machine to clients at competitive price.
Three Coordinate Deep Hole Gun Drilling Machine
close
Three Coordinate Deep Hole Gun Drilling Machine
21
Large Type Three Coordinate Deep Hole Gun Drilling Machine
close
Large Type Three Coordinate Deep Hole Gun Drilling Machine
22

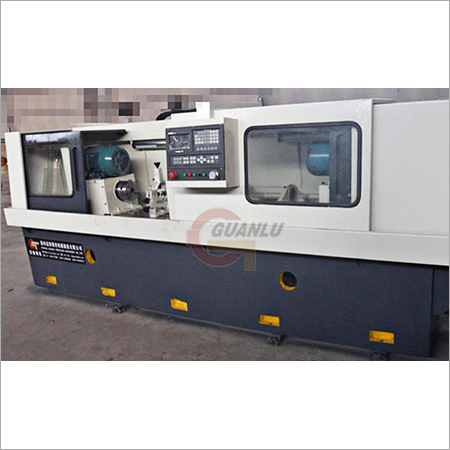

Deep Hole Gun Drilling Machine for Medical Device (Small Holes)
close
Deep Hole Gun Drilling Machine for Medical Device (Small Holes)
24
1000mm Deep Hole Gun Drilling Machine
close
1000mm Deep Hole Gun Drilling Machine
ZSK2104
Deep Hole Drilling Machine
close
Deep Hole Drilling Machine
NZK2103 (1500mm)

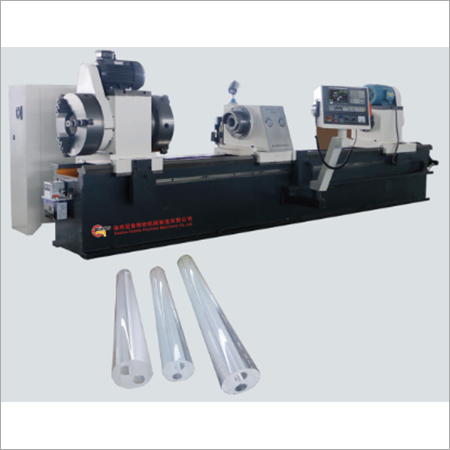

Deep Hole Drilling and Honing Machine Specially for Quatz Glass
close
Deep Hole Drilling and Honing Machine Specially for Quatz Glass
09

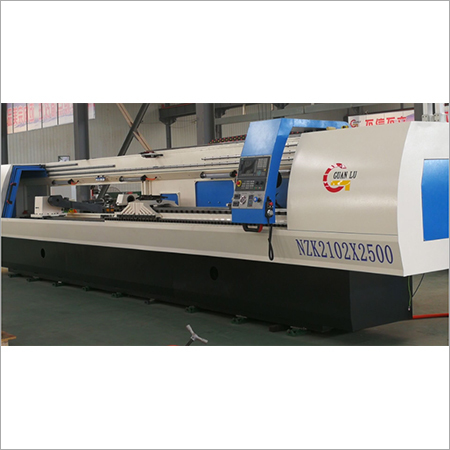

2500mm Gun Drilling Machine
close
2500mm Gun Drilling Machine
NZK2102 (2500mm)
3 Dimension Gun Drilling Machine for Molds & Block
close
3 Dimension Gun Drilling Machine for Molds & Block
ZSK2103A(1M)
Three coordinate gun drilling machine
close
Three coordinate gun drilling machine
ZSK2103A*2000mm
this machine is especially for cubic molds industry and valve block
Gun drilling machine for gun barrel
close
Gun drilling machine for gun barrel
NTK2102x2X2500mm
The machine is controlled by CNC system with function of both single action and automatic recycling so that it can meets the requirements of small batch and large batch machining. The machine can drill through hole, blind hole and step hole. The machine can be widely used in the line of automobile and motorcycle, mould, military and aeronautics.
