CNC Four spindle Gun drilling Machine

CNC Four spindle Gun drilling Machine
Send Inquiry
Product Code : NZK2102X4-1000mm
Brand Name : Guanlu
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price
  • 46000 USD ($)
  • Price Range
Product Specifications
  • Product Type
  • Horizontal
  • Material
  • casted iron
  • Computerized
  • Yes
  • Automatic Grade
  • Automatic
  • CNC Or Not
  • CNC
  • Control System
  • Other
  • Center Distance
  • 400 Millimeter (mm)
  • Voltage
  • Customer requirements
  • Power
  • 30000 Watt/Volt ( w/v)
  • Dimension(L*W*H)
  • machine size
  • Color
  • Other
  • Warranty
  • 12 months from the date of install or 13 months from the date of dispatch
Product Description

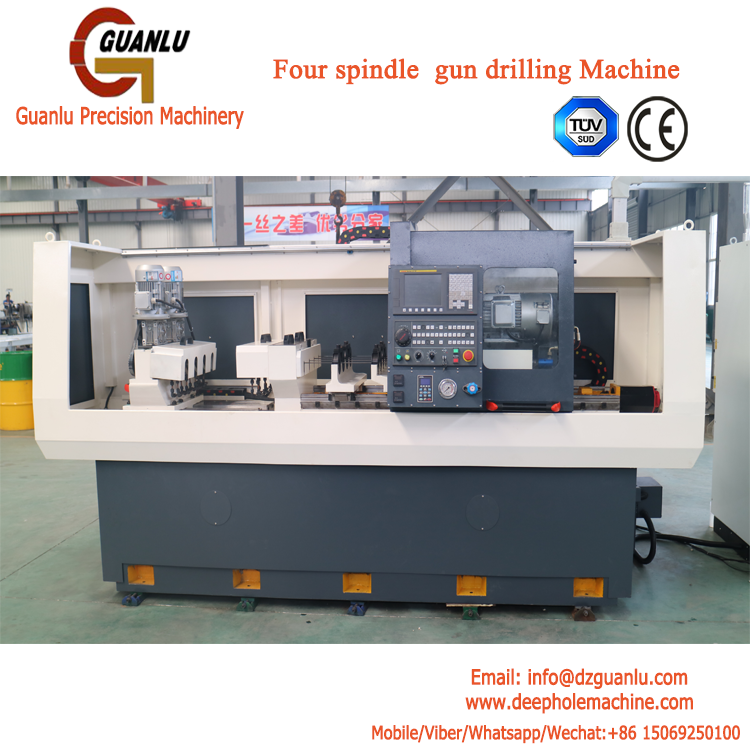

NZK2102X4-1000mm New Design CNC Four spindle Gun drilling Machine

Product Description



Machine Breif:

  • Drill mode:Gun drilling method. Concentric hole machining for cylindrical workpieces. Relative rotation of workpiece and tool during machining.
  • Workpiece clamping :The front end of headstock and guide frame spindle are equipped with cone disc. Axial movement of headstock spindle controlled by hydraulic system,The workpiece is clamped and positioned automatically by chamfering the cone disc and the both ends of the workpiece;When the users ordered the machine, they need to provide the chamfer size of both ends of the workpiece,as well as the workpiece size.
  • The machine adopts linear guide rail.
  • CNC system:GSK
  • The machine is equipped with simple safety guard.
  • Drilling box:It adopts servo main motor, Spindle is rotated by synchronous belt and synchronous belt wheel.Stepless speed regulation can be realized.The spindle speed range 500~5000r/min, the main motor power is 7.5kw,one motor drive two spindle rotation.
  • Tool infeed system:The structure of the ball screw is driven by the servo motor through the elastic coupling, and stepless speed regulation can be realized.
  • Drill bar support:2 groups, It can meet the maximum drilling hole length diameter ratio 100:1;;It adopts drill bar support linkage mechanism.
  • Center frame: 1 groups, It is used for workpiece support.Applicable workpiece outer diameter range: 25~70mm ; the upper cover of the center frame is manually opened and closed.
  • Headstock:It is used to drive workpiece rotation, using ordinary motor to drive spindle rotation through the reducer, spindle speed fixed at 85r/min, the main motor power 1.1kw, a motor drive two spindle rotation.
  • Cooling system: chain plate chip conveyor, paper tape filter, temperature controller, high voltage variable frequency pump group, a liquid level controller, according to the pressure and flow rate adjusting aperture of the cutting oil, and can display the value of flow and pressure.

Machine Mainly Parameters:



Specification

Parameters

Notes

Working capacity

Drilling diameter range

Φ7~Φ25mm



Max.drilling depth

1000mm



Max.length of workpiece

1000mm



Workpiece outer diameter range

Φ25~Φ70mm



Spindle quantity

4pcs



Spindle spacing

140mm



Machine performance

Z axis

Infeed speed range

5~500mm/min

Stepless

Rapid traverse rate

3000mm/min



Infeed motor torque

10Nm

With reducer

Drilling box

Rotation speed range

500~5000r/min

Stepless

Motor power

7.5KW×2

Servo spindle motor

Headstock

Rotated speed

85r/min

Stepless

Motor power

1.1KW×2



Cooling system

Max.pressure

10MPa

Adjustable

Max.flow

200L/min

Adjustable

Filtering accuracy

20μm



Oil tank capacity(roughly)

1500L








Machine Configuration list:



No.

Name

Manufacturer

1

CNC system,servo infeed motor

GSK

2

Main motor

Beijing CTB

3

Spindle bearing

Domestic brand

4

Screw bearing

Domestic brand

5

Ball screw

Domestic brand

6

Ball linear guide rail

Domestic brand

7

Chip conveyor

Domestic brand

8

Towline

Igus

9

Oil temperature controller

Tianjin Free

10

Paper tape filter

Domestic brand

11

Variable frequency motor for cooling system

Domestic brand

12

Inverter for cooling system

Domestic brand

13

Mainly hydraulic components

Taiwan Northman

14

Mainly electric components

SIEMENS or Schneider

15

Auto lubrication system

Domestic brand
