CNC Deep hole gun drill machine
CNC Deep hole gun drill machine CNC Deep hole gun drill machine CNC Deep hole gun drill machine CNC Deep hole gun drill machine CNC Deep hole gun drill machine CNC Deep hole gun drill machine CNC Deep hole gun drill machine CNC Deep hole gun drill machine CNC Deep hole gun drill machine

CNC Deep hole gun drill machine

46000 USD ($)/Set

Product Details:

  • Product Type Horizontal
  • Material casted iron
  • Computerized Yes
  • Automatic Grade Automatic
  • CNC Or Not CNC
  • Control System PLC Control
  • Center Distance 400 Millimeter (mm)
  • Supply Ability : 20 Set sets Per Year
  • Click to view more
X

Price And Quantity

  • 46000 USD ($)/Set
  • 1 Set

Product Specifications

  • 12 months from the date of install or 13 months from the date of dispatch
  • PLC Control
  • machine size Millimeter (mm)
  • Machine actual weight Kilograms (kg)
  • casted iron
  • Customer requirements Watt (w)
  • 30000 Watt (w)
  • CNC
  • Other
  • Good Stability, Stable Performance, High Efficiency, Lower Energy Consumption, Low Noise, ECO Friendly, High Performance, Simple Control
  • 400 Millimeter (mm)
  • Automatic
  • Yes
  • Horizontal

Trade Information

  • Tianjin
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
  • 20 Set sets Per Year
  • 4 Months
  • Standard export package
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Australia, Asia
  • CE ISO

Product Description

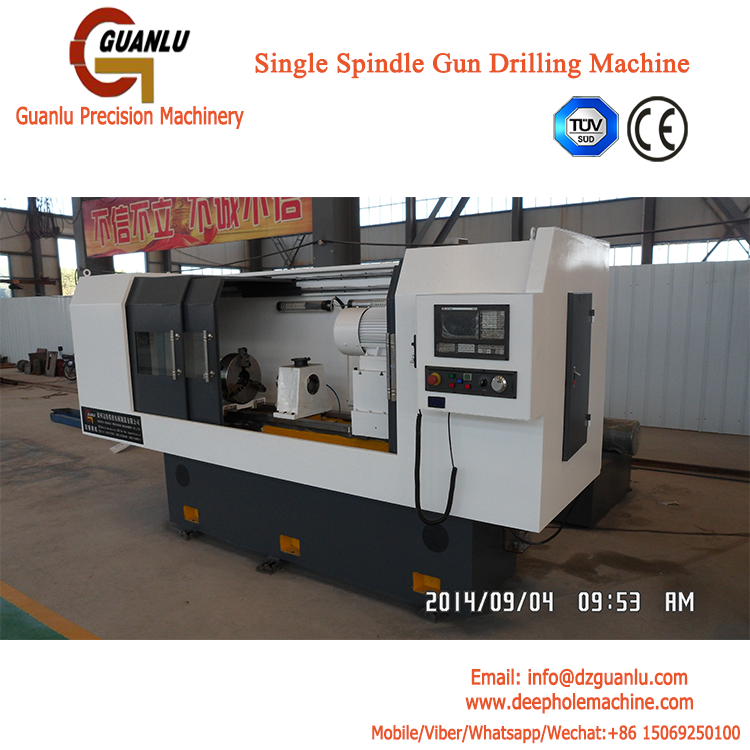

CNC deep hole gun drill machine

Component Details: round tube

Machine Specifications:

Technical Items

Parameters

Drilling diameter range

2mm-12mm

Max.Hole drilling depth

1500mm

Machine total power

20.5kw

Hole length-diameter ratio

200:1

Workpiece length-diameter ratio

40:1

CNC control system:

GSK system

Machine OD range

8-40mm

Machine structure:

  • Drilling method: The machine adopts gun drilling method; It is with single/double/four spindle structure. It can process 1, 2 or 4 workpieces at the same time, and is suitable for machining long and thin shaft.

  • When drillingï¼Å’the tool and workpiece are rotating relatively, the cutting tool is infeeding.

  • Headstock: It drives workpiece rotation, constant speed 120r/min; spindle can be axial movement under the control of hydraulic system, used for tightening or loosening the workpiece.

  • Cutter tool infeed: It adopts the structure : servo motor to drive the ball screw through elastic coupling , which the stepless speed regulation can be realized.

  • Workpiece clamping: the front end of headstock and guide frame spindle is assembled with cone disc.The hydraulic system controls the axial movement of the spindle of the headstock; By using the chamfering of the conical disc and the ends of the workpiece, the workpiece can be clamped and positioned automatically.

  • CNC control system: GSK

  • Hydraulic center frame:Each workpiece is equipped with a set of supporting parts for self centering function, and the claw is automatically closed or opened under the control of the hydraulic system.

  • Guide rail: The machine adopts linear guide rail.

  • Drill box: It is used to drive the workpiece rotating ; It adopts servo main motor to drive spindle rotating through synchronous belt and synchronous belt wheel, stepless speed regulation can be realized. and the max spindle speed can reach to 8000r/min. Main motor power: single spindle 2.2kw; double spindle 3.7kw(one motor drive the rotation of two spindle); Four spindle 3.7kw x2ï¼Ë†one motor drive the rotation of two spindleï¼â€°

  • Drill bar support: 4 groups, It is used to support the drill bar ; The drill bar support and drill box can be linked together; the drill box is at any position, and the spacing between drill bar supports is equal. The max hole length-diameter ratio 200:1 can be realized.

  • Cooling system: It mainly consist of high pressure pump group, chip removal device,oil chiller and filtering system.

  • Safety guard: The machine is with fully enclosed safety guard

Specification

Parameters

Notes


ZSK2101


Working capacity

Drilling diameter range

2 - 12mm



Max.drilling depth

1000mm



Max.workpiece length

1000mm



Workpiece OD range

8 - 40mm



Spindle quantity

1



Spindle space distance

-


Machine performance

Z axis

Infeed speed range

5- 500mm/min

STEPLESS



Rapid traverse rate

3000mm/min




Infeed motor torque

7.5Nm



Drill box

Max.rotation speed

8000r/min

STEPLESS



Motor power

2.2KW

Servo spindle motor


Headstock

Rotation speed

120r/min




Motor power

1.5KW


Cooling system

Max. pressure

15MPa

Adjustable


Max.flow

50L/min

Adjustable


Filtering accuracy

5 m



Oil tank volume (roughly )

500L


Others

Machine total power(roughly)

20.5kw



Floor space(roughly)

4.8m - 3.1m



Machine total weight(roughly)

6T



Max.hole length-diameter ratio

200
