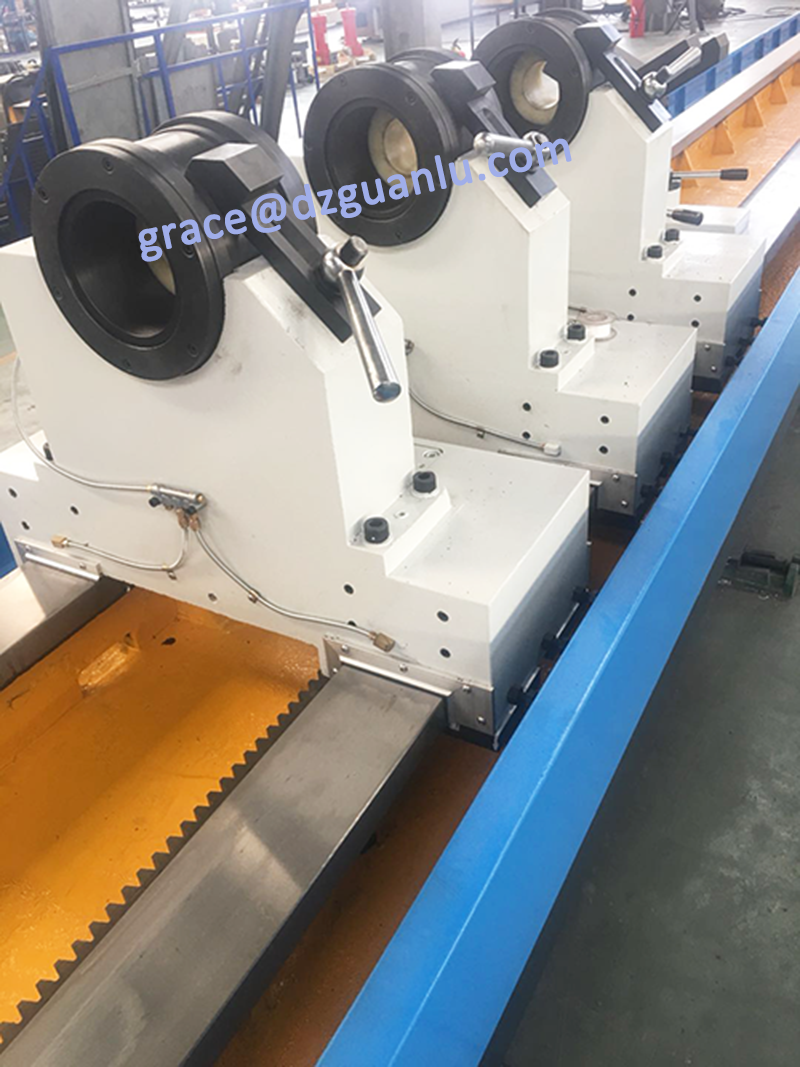

BTA deep hole drilling and boring machine for twin barrel processing

BTA deep hole drilling and boring machine for twin barrel processing
Send Inquiry
Product Code : NTK2225X10000MM
Brand Name : GUANLU
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price
  • 120000 USD ($)
Product Description
  • The offer is with CNC FANUC system.
  •  The machine is driven by rack and pinion.
  •  Oil box and small parts of the panels are spray plastics treatment.(powder painting).
  • The machine have drill box,so the tool can rotary as well as job.
  •  The machine is with 12months quality guarantee.

Specification

Parameters

Remark

Working capacity

Drill hole diameter range

30-100mm

-

Max. Boring hole diameter

250mm

-

Max. Depth of hole

10000mm

-

Max. Length of workpiece

10000mm

-

Workpiece OD range

60-330mm

-

Machine Character

Zaxis

Infeed speed range

5-500mm/min

Stepless

Rapid move speed

2000mm/min

-

Infeed motor torque

20Nm

Equips with precision gear reducer

Drill bar box

Gear quantity

40--500r/min

Manual, 12 steps

Motor power

30KW

-

Headstock

Gear quantity

40-500r/min

Manual,12 steps

Motor power

30KW

--

Coolant system

Max. Pressure

2.5MPa

Adjustable

Flow

100L/min 200L/min,

200L/min

Adjustable

Trade Information
  • FOB Port
  • Tianjin, Qingdao
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C)
  • Supply Ability
  • 15 sets Per Year
  • Delivery Time
  • 3 Months
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Covered by plastic film , fasten by iron wire
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Certifications
  • CE , ISO
