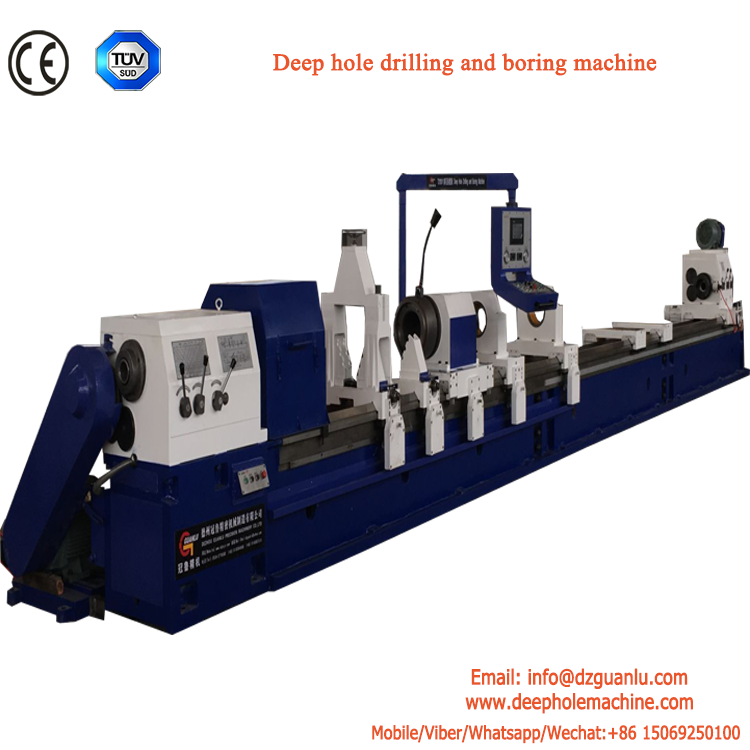

Twin screw hole drilling machine Twin screw hole drilling machine Twin screw hole drilling machine Twin screw hole drilling machine Twin screw hole drilling machine
Twin screw hole drilling machine
Twin screw hole drilling machine Twin screw hole drilling machine Twin screw hole drilling machine Twin screw hole drilling machine

Twin screw hole drilling machine

46000 USD ($)/Set

Product Details:

X

Price And Quantity

  • 1 Set
  • 46000 USD ($)/Set
  • 40000.00 - 100000.00 USD ($)/Set

Trade Information

  • Tianjin
  • 30sets Per Year
  • 4 months Months
  • 1. Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to prevent possible erosion during transportation. 2. A plastic cover to wrap around machine parts to enhance corrosion prevention. 3. Export standard fumigated wood cases are measured and specially made for packing. 4. Steel wire will be used to tighten and strengthen the packages inside container.
  • CE ISO

Product Description

Machine brief:

Drilling diameter range

30 -100mm


Boring diameter range

35 - 200mm

Max. Hole drilling depth

5000mm

Max. Length of Workpiece

5000mm

Machine processing method:

BTA drilling method, the cutting chips are discharged to the rear end through the drill bar inner hole.


Hole boring process

Push boring method, the cutting chips are discharged to the front end through workpiece bottomhole

Infeed method

Tooling is rotary and infeeding, the workpiece is motionless.

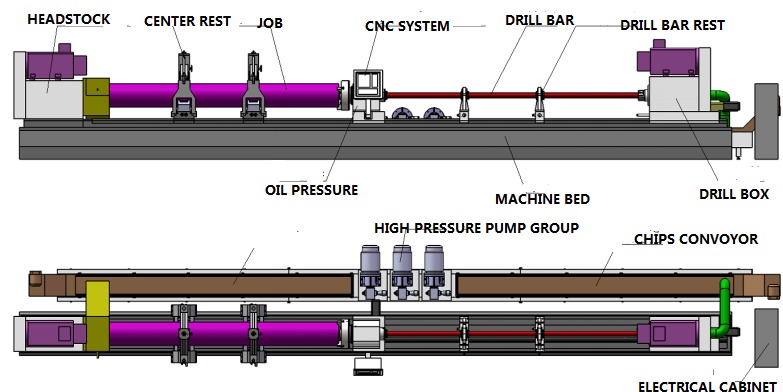

Main components:

Machine base, worktable, and other basic units

  • HT300 iron, resin sand precision casting.

  • Twice timing treatment, high rigidity and stability.

Workpice clamping

with 2 sets V type block to clamp the workpiece.

X-axis, Z-axis guide rails

Double rectangular sliding rails, precision grinding treatment, aging treatment, quenching treatment.

Drill bar box

  • The spindle rotation is driven by the motor through belt and gear box

  • Rotary speed range: 70-1000r/min(2-gear,speed stepless adjustable), Main motor power: 30kw(converter motor).

Tooling infeed system (Z-axis)

It adopts the structure that servo motor drives the T-slot leading screw through gear reducer to realize the speed stepless.

Drill bar rest

2 groups, supporting the drill bar.

Coolant system

To supply the oil for the tooling, consist of oil tank and 3 groups high press pumps.

Oil pressure head

  • Using for the cutting tool guiding, oil supplying, supporting. using ordinary motor to drive its axial movement;

  • The oil pressure head spindle can be pushed out and retracted under the control of the hydraulic system;

  • the oil pressure head can be automatically locked on the machine bed by the hydraulic press board.

T-slot worktable(X-axis)

  • The horizontal travel is 400mm;

  • driven by servo motor, servo reducer and ball screw;

  • Worktable dimension:2400X600mm;

  • worktable loading capacity : 4tons.

  • The worktable bed body and the tool bed body adopt divided structures, which are assembled together with high strength bolts and are positioned by the cone pin.

CNC system

GSK system
