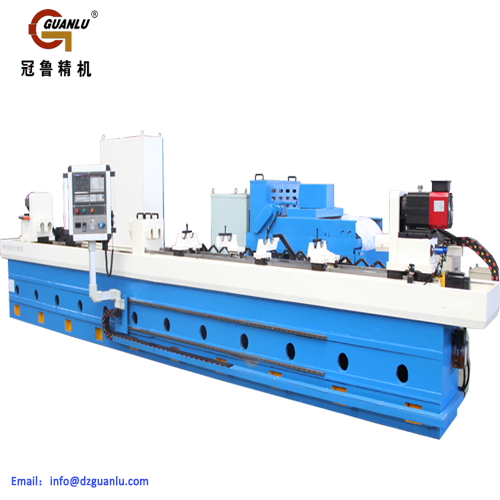

Single Axis Gun Drilling Machine
Product Details:
- Material Casting iron and steel
- Computerized Yes
- Automatic Grade Automatic
- Supply Ability : 15sets Per Year
- Click to view more
Price And Quantity
- 1 Set
- 40000 USD ($)/Set
Product Specifications
- Automatic
- Yes
- Casting iron and steel
Trade Information
- 15sets Per Year
- 120 Days
Product Description
Our highly dedicated professionals are able to manufacture and supply a top quality Single Axis Gun Drilling Machine. Ideal for drilling holes, this is used for manufacturing of large and small components of shafts. Due to high productivity and precision, the compact machine allows high level of flexibility for standard component. We assure clients that our offered Single Axis Gun Drilling Machine is manufactured using quality-approved components and are free from defects.
Features:
Longer working life
Easy installation
Rugged construction
Machine mainly parameters
| specification | Parameters | Remark | |||
| Working capacity | Drilling diameter range | 20mm |
| ||
| Drilling max depth | 500mm |
| |||
| Spindle space | 120/180/250mm |
| |||
| Machine character | Z axis | Infeed speed range | 5-500mm/min | stepless | |
| Rapid speed range | 3000mm/min |
| |||
|
|
|
| |||
| X axis | Rapid speed | 1000mm/min |
| ||
| traval | 650mm |
| |||
| Y axis | Rapid speed | 2000mm/min |
| ||
| traval | 300mm |
| |||
| Drilling bar box | Speed range | 800-7000r/min | stepless | ||
| Motor power | 3KW-2 | Inverter motor | |||
|
|
|
| |||
| Machine loading weight | 200kg |
| |||
| Hole length-diameter ratio | 100 |
| |||
| CNC system | FANUC | ||||
| Coolant systyem | Coolant system pressure range | 1-10MPa | adjustable | ||
| Coolant system flow range | 6-100L/min | adjustable | |||
| Filter accuracy | 20m |
| |||
| Oil chamber volume | >1000L |
| |||
Mainly structure of the machine
Machine body
Drilling bar box
Infeeding system(Z axis)
Coolant system
Oil temperature controller machine
Auto chips removal device
Central lubrication system
Pneumatic control system
Guide frame system
Drilling bar support system
Gsk CNC control system
Spare parts:
Oil chamber filter device and filter paper
Overflow valve
