PLC Control Deep Hole Honing Machine

40000-45000 USD ($)/Set

Get a Price/Quote

Product Details:

Product Type Horizontal
Material casted iron
Computerized Yes
Automatic Grade Semi-Automatic
CNC Or Not CNC
Control System PLC Control
Center Distance 400 Millimeter (mm)
Supply Ability : 20 Set SETS Per Year
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 Set
Price 40000-45000 USD ($)/Set

Product Specifications

Material casted iron
Color Other
Computerized Yes
Voltage Customer requirements Watt (w)
Dimension(L*W*H) machine size Millimeter (mm)
Power 30000 Watt (w)
Weight (kg) Machine actual weight Kilograms (kg)
CNC Or Not CNC
Control System PLC Control
Product Type Horizontal
Automatic Grade Semi-Automatic
Warranty 12 months from the date of install or 13 months from the date of dispatch
Center Distance 400 Millimeter (mm)

Trade Information

FOB Port Tianjin
Supply Ability 20 Set SETS Per Year
Delivery Time 4 Months
Packaging Details 1. Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to prevent possible erosion during transportation. 2. A plastic cover to wrap around machine parts to enhance corrosion prevention. 3. Export standard fumigated wood cases are measured and specially made for packing. 4. Steel wire will be used to tighten and strengthen the packages inside container.
Certifications CE ISO

Product Description

CNC horizontal internal cylinder tube boring and honing machine
Machine Operation: Deep hole Honing controlled by PLC
Component Details: hydraulic and pneumatic cylinder

Machine Specifications:

deep hole honing machine	Technical Parameters
Deep hole honing diameter range	50mm-500mm
Maximum honing diameter	500mm
Maximum honing length	6000mm
Workpiece clamping diameter range	50mm-500mm
Height from machine's main shaft center line to workpiece s machine base flat guide rail	270mm
Spindle speed range	15-250r/min
Main motor power	11kw(inverter motor and infinite speed variation)
Honing head expanding hydraulic system oil pump motor power	1.1kw
Honing head expand hydraulic system oil pump flow	12.5L/min
Coolant pump flow	100L/Min
Honing head hydraulic system Max. Tension force	4Mpa
Coolant chamber volume	950L
Coolant pump motor power	1.5KW
Coolant mode(for honing head)	Combined outside and inside oil feeding
Reciprocating motor power	7.5Kw(servo motor and infinite speed variation)

Honing oil feeding(outside and inside combine mode) advantages:

Traditional honing oil delivery is outside oil spary(honing oil spray to the innder workpiece through oil hose).
Honing oil go inside through honing bar,which can make the coolant oil form into higher pressure,which will have big force to wash the honing dirties.
Inside honing oil feeding can make up the long workpiece honing defect. When honing long workpiece(more than 1.5m),only use outside honing oil delivery,which could not cool and wash the honing head,but by inside honing oil delivery,which can cool and wash the honing head in time.

Machine bed base:

Machine bed base	Square steel welding--tempering-ageing treatment--ball blast treatment--machining process(planing,grinding,milling)
Guide rail	Round linear guide rail,driven by rack and pinion
Carrier	Carrier is mounted on round linear guide rail.

Workpiece:

Workpiece clamping mode	Chains clamping(tighten),screw drive chains to fasten the workpiece
Workpiece location	V rest and U wheel(depends on the workpiece size), Centering the workpiece by adjusting the screw.
Workpiece honing oil infeeding	Honing bar (inside honing oil)delivery and outside honing oil through oil hose.

Honing head:

Honing head	Installed on the honing bar,and the honing bar is driven to rotate and do axial infeeding by honing box
Honiing head drive	Driven though honing box spindle rotation,and do axial motion
Honing head tension/expanding	By hydraulic (1.1KW)

Honing box:

Honing box	Mounted on carrier
Honing box motor	11KW,inverter control,infinite speed variation)
Honing box speed range	15-250r/min

Packaging & Shipping

Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to prevent possible erosion during transportation.
A plastic cover to wrap around machine parts to enhance corrosion prevention.
Export standard fumigated wood cases are measured and specially made for packing.
Steel wire will be used to tighten and strengthen the packages inside container.

Other Products in 'Deep Hole Honing Machine' category

Hydraulic Cylinders Drilling Machine Price : 4000045000 USD ($)/Set Automatic Grade : SemiAutomatic Minimum Order Quantity : 1 Material : casted iron Computerized : Yes Weight (kg) : Machine actual weight Kilograms (kg) Control System : PLC Control CNC Or Not : CNC Warranty : 12 months from the date of install or 13 months from the date of dispatch Product Type : Horizontal Center Distance : 400 Millimeter (mm) Color : Other Voltage : Customer requirements Watt (w) Dimension(L*W*H) : machine size Millimeter (mm) Power : 68000 Watt (w)

Send Inquiry

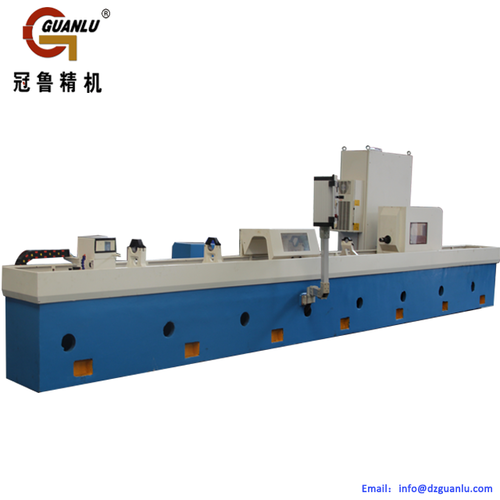

Horizontal Cylinder Honing machine Price : 4000045000 USD ($)/Set Automatic Grade : SemiAutomatic Minimum Order Quantity : 1 Material : casted iron Computerized : Yes Weight (kg) : 5000 Kilograms (kg) Control System : PLC Control CNC Or Not : Normal Warranty : 12 MONTHS Product Type : Horizontal Center Distance : 140 Millimeter (mm) Color : Other Voltage : Customer request Watt (w) Dimension(L*W*H) : Machine actual weight Millimeter (mm) Power : 25KW. Volt (v)

Send Inquiry

Cylinders Repairing Horizontal Honing Machine Price : 4000045000 USD ($)/Set Automatic Grade : SemiAutomatic Minimum Order Quantity : 1 Material : casted iron Computerized : Yes Weight (kg) : Machine actual weight Kilograms (kg) Control System : PLC Control CNC Or Not : CNC Warranty : 12 months from the date of install or 13 months from the date of dispatch Product Type : Horizontal Center Distance : 400 Millimeter (mm) Color : Other Voltage : Customer requirements Watt (w) Dimension(L*W*H) : machine size Millimeter (mm) Power : 30000 Watt (w)

Send Inquiry

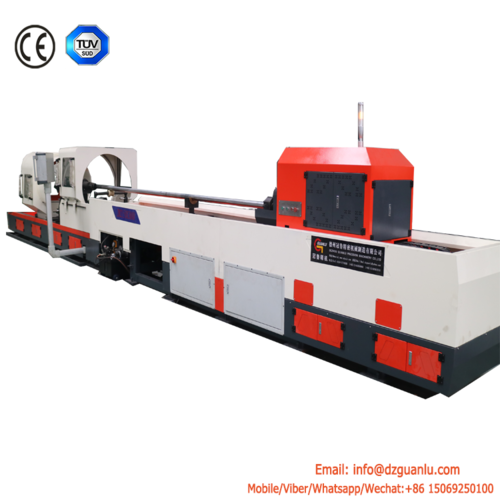

Internal Cylinder Tube Honing Machine Price : 4000045000 USD ($)/Set Automatic Grade : SemiAutomatic Minimum Order Quantity : 1 Material : casted iron Computerized : Yes Weight (kg) : Machine actual weight Kilograms (kg) Control System : PLC Control CNC Or Not : Normal Warranty : 12 months from the date of install or 13 months from the date of dispatch Product Type : Horizontal Center Distance : 400 Millimeter (mm) Color : Other Voltage : Customer requirements Watt (w) Dimension(L*W*H) : machine size Millimeter (mm) Power : 30000 Watt (w)
