Gun drilling machine for thermocouple

1 USD ($)/Set

Get a Price/Quote

Product Details:

Spindle Speed 5-1000 RPM
Condition New
Product Type Horizontal
Material Casting iron and steel
Computerized Yes
Automatic Grade Automatic
CNC Or Not CNC
Supply Ability : 20 Set sets Per Year
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 Set
Price 1 USD ($)/Set

Product Specifications

Material Casting iron and steel
Voltage 380 V or Customizable Watt (w)
Power 27000 Watt (w)
CNC Or Not CNC
Weight (kg) 7000 Kilograms (kg)
Condition New
Spindle Speed 5-1000 RPM
Automatic Grade Automatic
Color Customer-tailored
Dimension(L*W*H) Machine actual dimension Millimeter (mm)
Computerized Yes
Product Type Horizontal

Trade Information

FOB Port Tianjin
Payment Terms Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)
Supply Ability 20 Set sets Per Year
Delivery Time 4 Months
Sample Policy Contact us for information regarding our sample policy
Packaging Details 1. Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to prevent possible erosion during transportation. 2. A plastic cover to wrap around machine parts to enhance corrosion prevention. 3. Export standard fumigated wood cases are measured and specially made for packing. 4. Steel wire will be used to tighten and strengthen the packages inside container.
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications CE ISO

Product Description

The box, machine bed ,infeeding slide table and other basic parts was made of cast iron.
The cutter tool infeeding guide rail adopts roller guide linear rail.
The spindle drive was installed in the drill box front end ,which could protect the main motor and conveniently change the cutter tool.
The spindle drive was installed in the headstock front end, it is convenient to load and unload the workpiece ,could protect the main motor.
.The machine bed oil returning chute is designed slanting,which will not store oil.

Machine mainly parameters:

Specification			Parameters	Notes
Working capacity	Drilling diameter range		7 x 25mm
	Max.drilling depth		1000mm
	Max.length of workpiece		1000mm
	Workpiece outer diameter range		25 x 70mm
	Spindle quantity		4pcs
	Spindle spacing		140mm
Machine performance	Z axis	Infeed speed range	5ï½ž500mm/min	Stepless
		Rapid traverse rate	3000mm/min
		Infeed motor torque	10Nm	With reducer
	Drilling box	Rotation speed range	500 x 5000r/min	Stepless
	Drilling box	Motor power	7.5KW x 2	Servo spindle motor
	Headstock	Rotated speed	85r/min	Stepless
	Headstock	Motor power	1.1KW2
Cooling system	Max.pressure		10MPa	Adjustable
	Max.flow		200L/min	Adjustable
	Filtering accuracy		20 m
	Oil tank capacity(roughly)		1500L

Other Products in 'Gun Drilling Machines' category

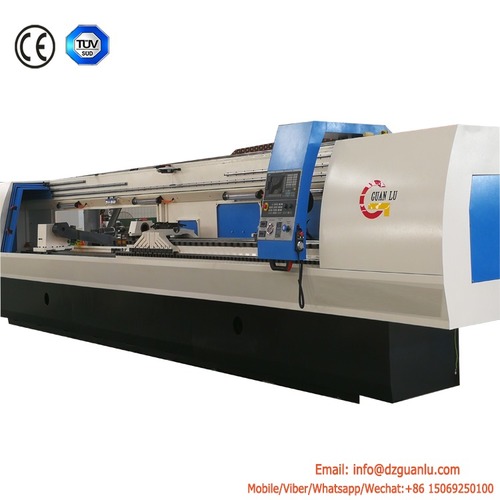

Bone nail drilling machine Computerized : Yes Price : 40000 USD ($)/Set Minimum Order Quantity : 1 Material : casted iron Automatic Grade : Automatic Dimension(L*W*H) : machine size Millimeter (mm) Color : Other Control System : Other Center Distance : 400 Millimeter (mm) Product Type : Horizontal Power : 30000 Watt (w) CNC Or Not : CNC Warranty : 12 months from the date of install or 13 months from the date of dispatch Voltage : Customer requirements Watt (w)
