CNC Four spindle gun drilling machine

40000 USD ($)/Set

Get a Price/Quote

Product Details:

Material Casting iron and steel
Computerized Yes
Automatic Grade Automatic
Supply Ability : 15sets Per Year
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Price 40000 USD ($)/Set
Minimum Order Quantity 1 Set

Product Specifications

Automatic Grade Automatic
Computerized Yes
Material Casting iron and steel

Trade Information

FOB Port Tianjin
Payment Terms Telegraphic Transfer (T/T), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C)
Supply Ability 15sets Per Year
Delivery Time 120 Days
Packaging Details Standard export packaging
Main Export Market(s) Australia, Eastern Europe, Middle East, Western Europe, Africa, South America, Asia, North America
Certifications CE ISO

Product Description

Machine brief:

Drill mode Gun drilling method. Concentric hole machining for cylindrical workpieces. Relative rotation of workpiece and tool during machining.
Workpiece clamping The front end of headstock and guide frame spindle are equipped with cone disc. Axial movement of headstock spindle controlled by hydraulic systemÃ¯¼ŒThe workpiece is clamped and positioned automatically by chamfering the cone disc and the both ends of the workpiece When the users ordered the machine, they need to provide the chamfer size of both ends of the workpiece,as well as the workpiece size.
The machine adopts linear guide rail ‚
CNC system GSK
The machine is equipped with simple safety guard.
Drilling box It adopts servo main motor, Spindle is rotated by synchronous belt and synchronous belt wheel.Stepless speed regulation can be realized.The spindle speed range 500~5000r/min, the main motor power is 7.5kw,one motor drive two spindle rotation ‚
Tool infeed system The structure of the ball screw is driven by the servo motor through the elastic coupling, and stepless speed regulation can be realized.
Drill bar support 2 groups, It can meet the maximum drilling hole length diameter ratio 100:1; It adopts drill bar support linkage mechanism.
Center frame: 1 groups, It is used for workpiece support.Applicable workpiece outer diameter range:25~70mm ; the upper cover of the center frame is manually opened and closed.
Headstock It is used to drive workpiece rotation, using ordinary motor to drive spindle rotation through the reducer, spindle speed fixed at 85r/min, the main motor power 1.1kw, a motor drive two spindle rotation.
Cooling system: chain plate chip conveyor, paper tape filter, temperature controller, high voltage variable frequency pump group, a liquid level controller, according to the pressure and flow rate adjusting aperture of the cutting oil, and can display the value of flow and pressure.

Other Products in 'Gun Drilling Machines' category

CNC Deep hole gun drill machine Computerized : Yes Material : casted iron Price : 40000 USD ($)/Set Automatic Grade : Automatic Minimum Order Quantity : 1 Power : 30000 Watt (w) Weight (kg) : Machine actual weight Kilograms (kg) Voltage : Customer requirements Watt (w) Product Type : Horizontal Control System : PLC Control Dimension(L*W*H) : machine size Millimeter (mm) Color : Other CNC Or Not : CNC Warranty : 12 months from the date of install or 13 months from the date of dispatch Center Distance : 400 Millimeter (mm)

Send Inquiry

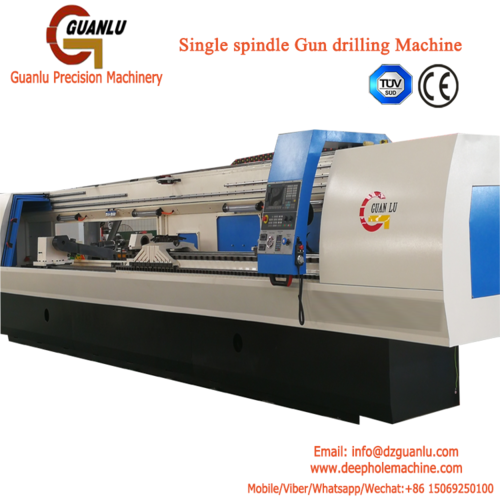

Gun Drill Machinery Computerized : Yes Material : Casting iron and steel Price : 40000 USD ($)/Set Automatic Grade : Automatic Minimum Order Quantity : 1 Power : 30000 Watt (w) Weight (kg) : Machine actual weight Kilograms (kg) Voltage : Customer requirements Watt (w) Product Type : Horizontal Control System : Other Dimension(L*W*H) : machine size Millimeter (mm) Color : Other CNC Or Not : CNC Warranty : 12 months from the date of install or 13 months from the date of dispatch Center Distance : 400 Millimeter (mm)
