1000mm Deep Hole Gun Drilling Machine
40000 USD ($)/Set
Product Details:
- Material Casting iron and steel
- Computerized Yes
- Automatic Grade Automatic
- Supply Ability : 15sets Per Year
- Click to view more
X
Price And Quantity
- 1 Set
- 40000 USD ($)/Set
Product Specifications
- Casting iron and steel
- Yes
- Automatic
Trade Information
- 15sets Per Year
- 120 Days
Product Description

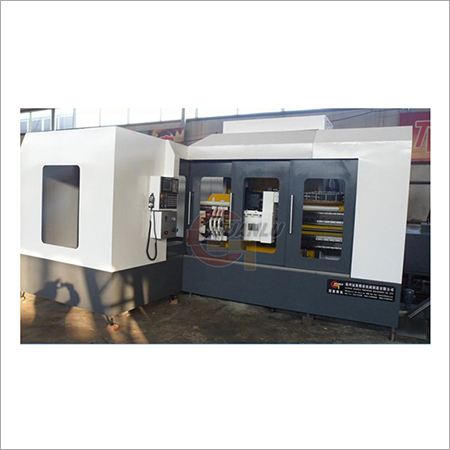

ZSK2104×1000mm Deep Hole Gun Drilling Machine
Machine Mainly Parameters
| Specification | Parameters | Remak | |||
| Working range | Dia. Range of drilling hole | Φ3~Φ30mm |
| ||
| Max. Depth of drilling hole | 1000mm |
| |||
| Z axis | Fast moving speed | 3000mm/min |
| ||
| Infeeding speed range | 5~500mm/min | Stepless | |||
| Torque of infeeder motor | 7Nm |
| |||
| Rotation speed range of drilling bar box | 400~5000r/min | Stepless | |||
| Drilling bar box motor power | 5.5kW | Frequency conversion motor | |||
| General power of the machine | 24kW |
| |||
| Drilling hole draw ratio | 100 |
| |||
| Working table size | 400×2000 |
| |||
| Height from spindle center to bed | 300mm |
| |||
| CNC control system | GSK CNC control system | ||||
| Coolant system | Pressure rang of coolant system | 0~8MPa | Adjustable | ||
| Max. Flow for coolant system | 63L/min | Adjustable | |||
| Filter accuracy | 40μm |
| |||
